Hot Sale Swimming Pool Wooden Flooring Wood Plastic Composite WPC Decking Extruder Machine Production Line Manufacturer

Basic Info

Model NO.	SJMS65/132
Certification	CE
Customized	Customized
Raw Material	Waste PP/PE +Wood Powder
Products	PP PE WPC Profiles
Capacity	160-240kg/H
Application	Outdoor Lanscapes
Main Motor	Siemens
Inventer	ABB
Contactor	Schneider
Temperature Controller	Omron
Transport Package	Sea Worth Package
Specification	SJMS65/132
Trademark	HEGU
Origin	China
HS Code	84772090
Production Capacity	160-240kg/H

Product Description

Hot Sale Swimming Pool Wooden Flooring Wood Plastic Composite WPC Decking Extruder Machine Production Line Manufacturer

This WPC machine is used for making WPC profiles by Wood and Plastic composition, such as WPC decking, WPC wall cladding, WPC fencing, WPC pergola, WPC post, etc.Co-extrusion suprotect decking is the latest WPC decking produced by modern co-extrusion technology.
Simple speaking, the process is to extrude two materials at the same time and give the boards a natural layered appearance and more protection.The outer layer can provide multiple colors onto the board surface to create wood-like and colorful finish, and the inner layer can achieve the requirements for mechanical and other physical properties.

HGMSE series PP/PE WPC profile production line can continuously produce PP/PE WPC co-extrusion profile.
The WPC profile adopts two-step production process.The first step is using WPC granulating machine to make WPC pellets from recycled PP/PE material,wood powder and chemical additives.The max wood percentage can be 70%.The the WPC profile extrusion line will make the WPC pellets into WPC profiles by equip customized mold.We can equip on-line embossing machine to achieve 3D wooden pattern.The profile produced by this production line can be sanded and brushed by sanding machine and brushing machine.

Raw material: Using Waste wood and Waste plastic WPC wood plastic machine for making WPC decking and profiles

Plastic material	recyccled PP/PE plastic
Wood material	wood powder from rice husk/straw,wheat husk/straw,wood sawdust,wastage wood
Percentage of plastic	25-30%
Percentage of wood powder	50-70%
Final product	WPC decking, WPC wall cladding, WPC pergola profile,WPC post, WPC fence profile, and other WPC construction profiles
Production process	raw material--mixing--granulation--extrusion and molding--surface treatment

PE WPC Turnkry Project Machine Images

HGMSE series PP/PE WPC profile production line can continuously produce PP/PE WPC profile. The WPC profile adopts two -step production process. The granulating machine make WPC pellets using PP/PE recycled materials, wood powder and auxiliary agent. Then use this production line produce WPC profile.Customers can choose embossing machine for the production line to achieve 3D pattern performance.Customers can also make PE WPC single color or double color co-extrusion profile by adding extruders.The profile produced by this production line can be sanded and brushed by sanding machine and brushing machine.

1, WPC granulation machine

After get ready wood powder and recycled PP/PE plastic, the first step is mixing them with chemicals, then use WPC granulation machine to make WPC granules
SHMS series granulating machine is used for making WPC pellets. The WPC pellets produced by WPC granulating machine can used for making WPC product using WPC machine.The granulating machine consists of parallel double-screw extruder,water cooling system, a granulator and air conveyor cooling system.The feeder and hopper are equipped with mixer to prevent the material blocked up.If customer do not have strict requirements about the appearance of pellets, the granulator can be removed.The pellets extrude by extruder directly, then go for crusher. Can improve the production capacity.

Model	L/D ratio	Max.capacity	Motor power	Suitable material	Max.rotating speed	Wood powder percentage
SHMS-65	40:1	200-220kg/h	75kw	Pe+wood powder	500r/min	≤75%
SHMS-75	40:1	300-350kg/h	90kw	Pe+wood powder	500r/min	≤75%
SHMS-90	40:1	500-600kg/h	132kw	Pe+wood powder	500r/min	≤75%

2, WPC profile extrusion line

Material: recycled 30% PP/PE+70% wood powder+chemical additives.
Product: WPC decking, WPC wall cladding, WPC fence, WPC pergola..
The WPC profile extrusion line can make WPC granules into WPC products by equipping required mold, we can equip co-extrusion system and online 3D embossing device for making WPC products in high quality with wooden grain, the line also equipped with online cutting device.

Model	HGMSE-65	HGMSE-80
Extruder model	SJMS65/132	SJMS 80/156
Motor power	37kw	75kw
Mac.Extrusion capacity	140-160kg/h	220-250kg/h
Co-extruder(Optional)	SJ35/28	SJ45/28

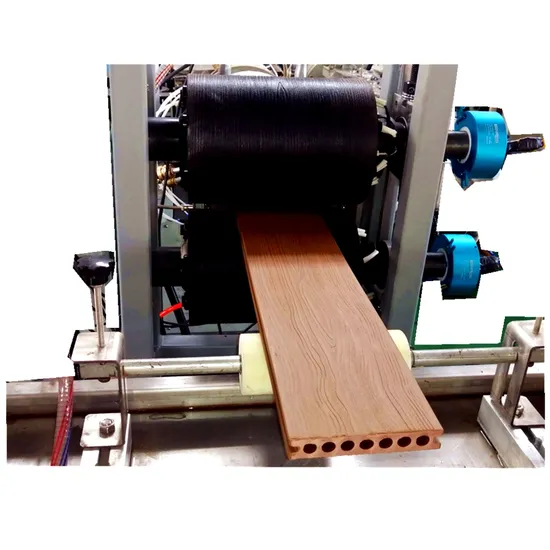

We have high quality Online embossing device.it can do amazing 3D embossing design

WPC product wood surface making machineEmbossing machine, sanding machine, brushing machine, online embossing machine. these machines is for making WPC products with better wooden feeling design.
WPC sanding machine
This machine is used for fixing the size of single extrusion WPC product and doing surface treatment

WPC brushing machine
This machine is used for brushing the WPC product. To do the different surface on WPC product by changing the brushing roller and sanding roller

WPC brushing and sanding machine
This machine is used for doing surface treatment of different WPC product. This machine has the function of sanding machine and brushing machine. PE WPC Products Application

1) Products Range: Decking, Flooring, Wall Panel, Fence, Pergola, Handrail, Flower Box, DIY Decking Tile etc.
2) New Items: Wood Grain series, Color Mixed series, High-strength Series.
3) Products Certification: FCBA, Intertek, SGS, CE, Incafust, OETI
4) Quality Managemant System Certification: ISO9001, ISO14000, OHSAS18000, FSC
5) Production Capacity: 35 production machines, 300 workers.

WPC Material	60% wood fiber (moisture lower than 1%) 35% plastic (Grade A HDPE) 5% additives
Surface Treatment	Sanding, brushing, wood grain, mix color, smooth
Advantages	1, longer service life(more than 12 years and 10 year quality guarantee) 2, Waterproof, Antiseptic, Slip resistant (wet & dry) 3, No crack/disruption/warp, No wood thorns hurt, No worm-eaten 4, Maintenance free, no need to paint, carry color itself 5, Same look and feel like real wood, but behave much better 6, Slight water absorption, good dimensional stability, very little expansion/contraction 7, 100% Recycled, friendly to the environment 8, Cuts/fastens/nail/paint easily, easy installing

The PE WPC profile extrusion line is suitable for producing the hollow/solid PE WPC profiles. This profile has the advantage of fireproof, waterproof, moisture proof, moth proof, mildew proof and environment friendly. It is mainly used for extruding outdoor decorative WPC profiles, such as gardening landscapes, outdoor landscapes, pallets etc.This extrusion line is for producing co-extrusion PP/PE WPC decking. The decking surface can be made into wood grain by co-extruder. Further more, the machine can be equipped with on-line embossing device the surface can be made into 3D wood grain. The WPC decking has a series of advantage including water-proof, insect prevention, ageing resistant, easy installation, environment friendly and good weathering resistance.
